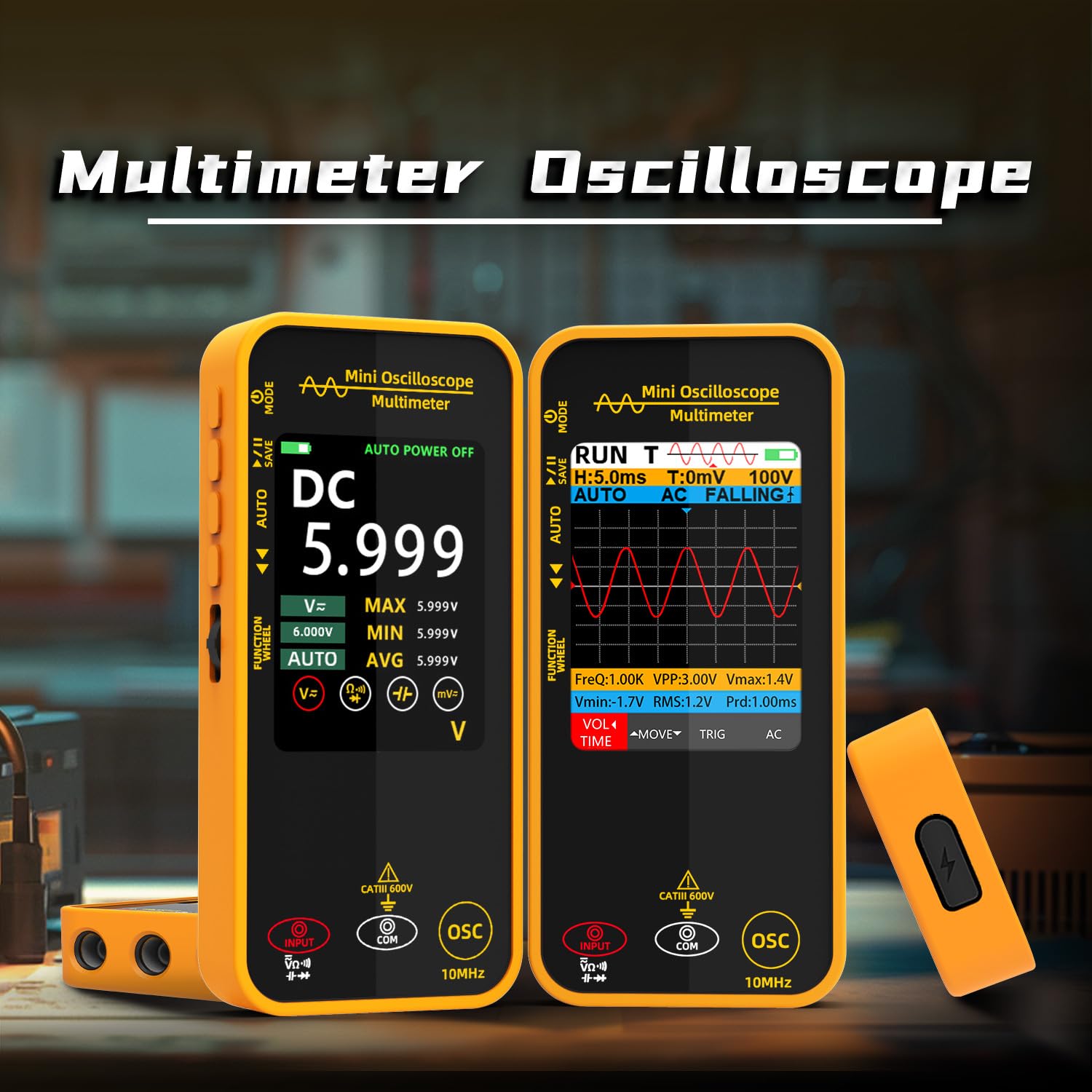

BSIDE Handheld Digital Oscilloscope Multimeter, 3.2” Color LCD with 10MHz Bandwidth, Rechargeable with Auto/Normal/Single Trigger, Measures Capacitance Diode MAX/MIN/AVG Ohm Voltage for DIY Hobbyist

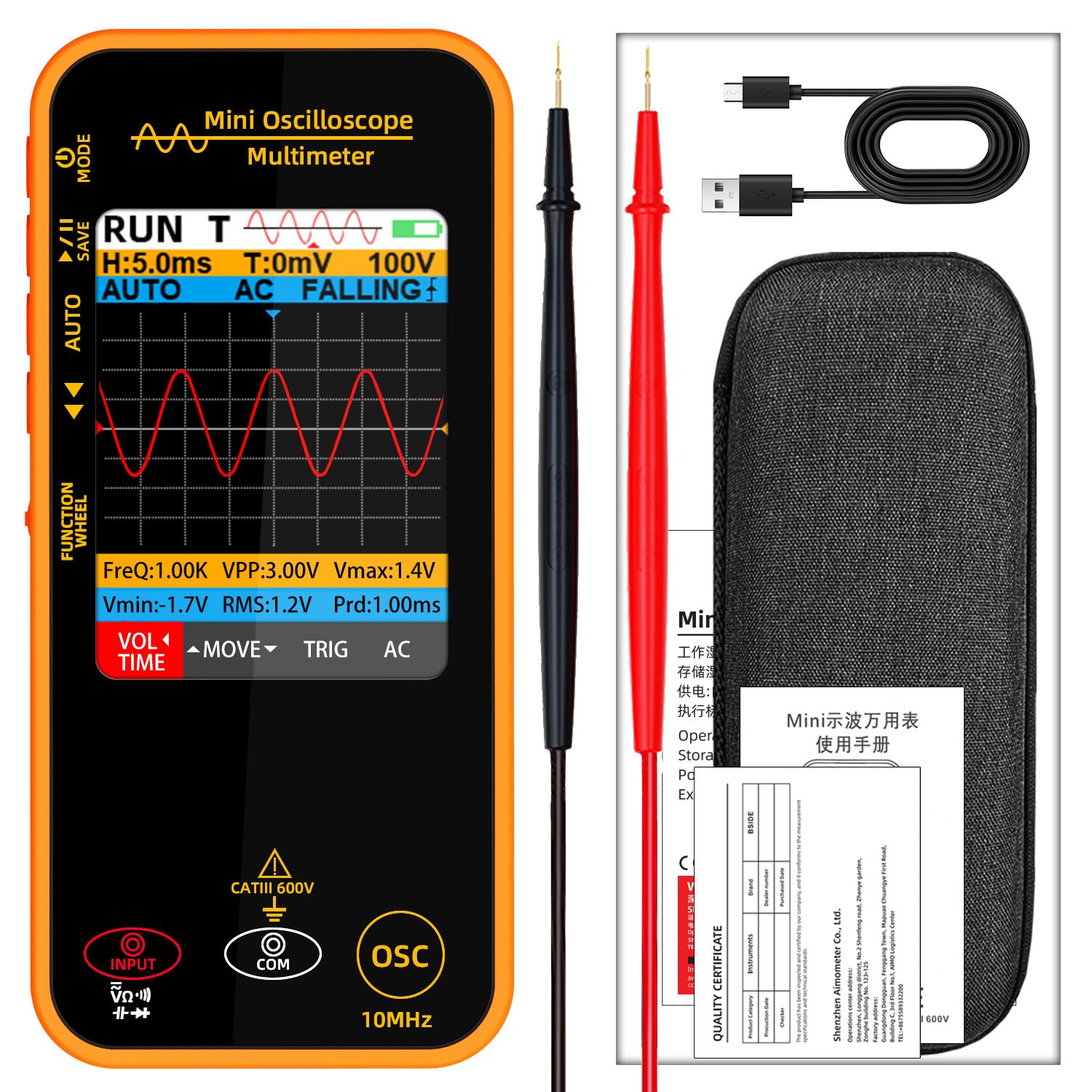

Features: Handheld oscilloscope Portable graph multimeterr Rechargeable color display oscilloscope Tested data can be saved and exported to your computer Full-viewing oscilloscope with low battery indication Specifications: MAX Display: 6000 counts Screen Size: 3.2 inch Bandwidth: 10MHz Real-time sample rate: 48MSa/s Input Impedance: 1MΩ Maximum Input Voltage: 300V (DC+AC peak) Horizontal SEC Range: 50ns/div -20s/div Vertical Sensitivity: 200mV/div -100V/div DC Voltage: 60mV 0.01mV ±(1%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(0.8%+3); 600V/1000V 0.1V/0.1V ±(1%+5) AC Voltage: 60mV 0.01mV ±(1.2%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(1%+3); 600V 0.1V ±(1.2%+5); 750V 1V ±(1.2%+5) Resistance: 600Ω 0.1Ω ±(1.2%+5); 6kΩ/60KΩ/600KΩ 0.001KΩ/0.01KΩ/0.1KΩ ±(1.0%+3); 6MΩ 0.001MΩ ±(1.2%+5); 60MΩ 0.01MΩ ±(1.5%+5) Capacitance: 999.9nF 0.1nF ±(5%+20); 9.99µF/999.9µF 0.001µF/0.01µF ±(4.5%+5); 99.99mF 0.001mF ±(5.0%+10) Diode: Yes Continuity: Yes Power: 1200mA battery (rechargeable) Size: 143 x 66 x 21 mm Weight: 160g Package Includes: 1 x Handheld Oscilloscope Multimeter 1 x Carrying Case 1 x Charging Cable 1 x User Manual

• [Multimeter Mode]: BSIDE OS1 multimeter measures MAX/MIN/AVG, capacitance, diode, voltage, resistance, continuity, etc.
• [Oscilloscope Mode]: Handheld oscilloscope features 10MHz bandwidth, 48MSa/s sampling rate, 64kb record depth, auto/normal/single trigger function, etc.
• [3.2" Full-Viewing LCD]: Digital multimeter has a full-viewing 3.2 inch full-viewing screen, which greatly enhance your reading experience.
• [BNC-Ports Free]: Oscilloscope multimeter with no BNC port design, whatever measurement requires only use the same test leads, which is convenient for your work.
• [Rechargeable]: Scope tester comes with 1200mAh rechargeable battery, ensuring that you never have to worry about running out of power during measurements.
• [Protective Case]: Oscilloscope multimeter with durable protective case for protection against shocks, friction and bumps.
• [Carrying Case]: Portable oscilloscope comes with a high quality carrying case, perfect for use while you're on the go.
